Semiconductor History | 4500 South Dobson Road, 1996 — Fab 12 Copies a Process Into the Arizona Desert
kevin

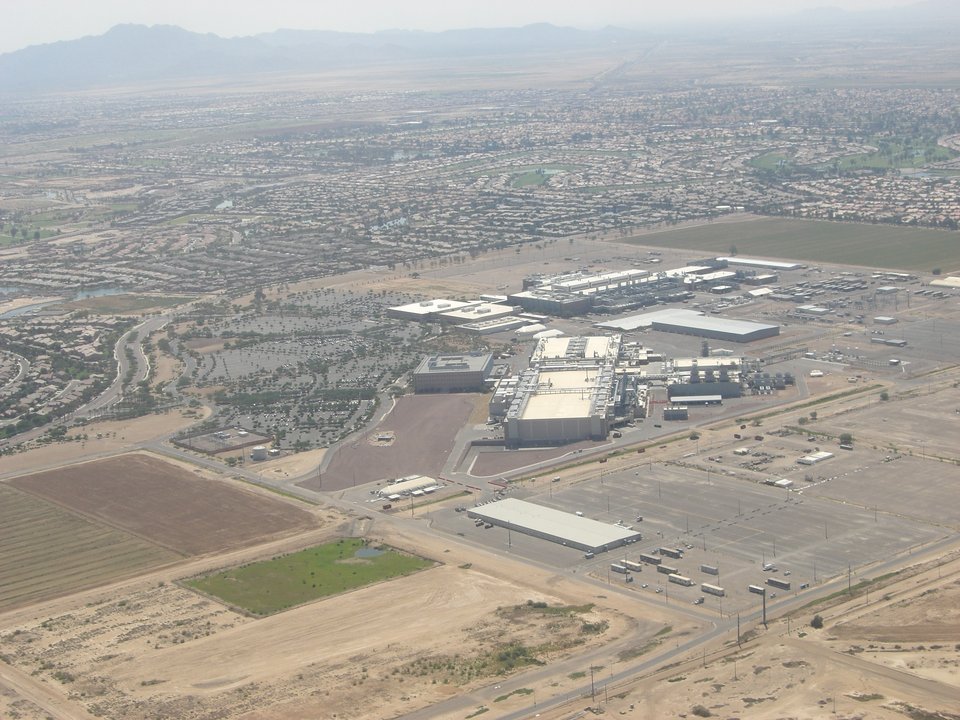

Fab 12, Fab 22, and Fab 32 spread across Intel's Ocotillo campus in this 2007 aerial photograph, turning a desert-edge site into a network of linked semiconductor factories.
Intel opened Fab 12 in 1996 after moving from groundbreaking to production in twenty-three months. The roughly $1.3 billion project began with 200-millimeter wafers, about 1.5 million square feet of building area, and more than 2,000 skilled jobs.
Speed depended on transferring knowledge, not merely pouring concrete.
Intel's Copy Exactly method required a production fab to reproduce the qualified development process in minute detail, including equipment, recipes, materials, software, and facilities connections. The discipline limited new variables during a ramp, helping a distant factory reach useful yields without rediscovering every lesson from the development line.
Fab 12 made that method visible in an unforgiving setting.
When Intel transferred 65-nanometer production from damp Oregon to dry Arizona, engineers even had to reproduce the air conditions surrounding the tools. The objective was not architectural sameness for its own sake, but statistically matched output from factories separated by climate and geography.
The strength could become rigidity if applied in the wrong phase.
Intel's own 1998 account warned that Copy Exactly should not govern technology development, where creativity and controlled experimentation are essential. Even in volume manufacturing, improvements still had to be tested and then coordinated across the network, so consistency required a large management system rather than a literal ban on change.
Fab 12 also tested a new regulatory bargain.
Intel, the Environmental Protection Agency, Arizona regulators, and local participants negotiated a 1996 Project XL agreement that traded a more flexible, site-wide permit for enforceable limits and public reporting. Supporters saw faster adaptation for a fast-changing factory; the need for community participation showed that manufacturing speed could not be the only measure of success.
Intel later converted Fab 12 from 200-millimeter to 300-millimeter wafers and reopened it in 2006, extending the building's useful life.
The good was repeatable learning, rapid ramps, and a factory that could be renewed. The bad was that standardization and regulatory flexibility both demanded disciplined oversight: without it, efficiency could hide local differences or shift risk onto the surrounding community.
The pin marks Intel's street address at 4500 South Dobson Road, the public approach to the active Ocotillo campus. Visitors should remain on public roads and outside security gates.
Photo: neepster, CC BY-SA 2.0, via Wikimedia Commons.
